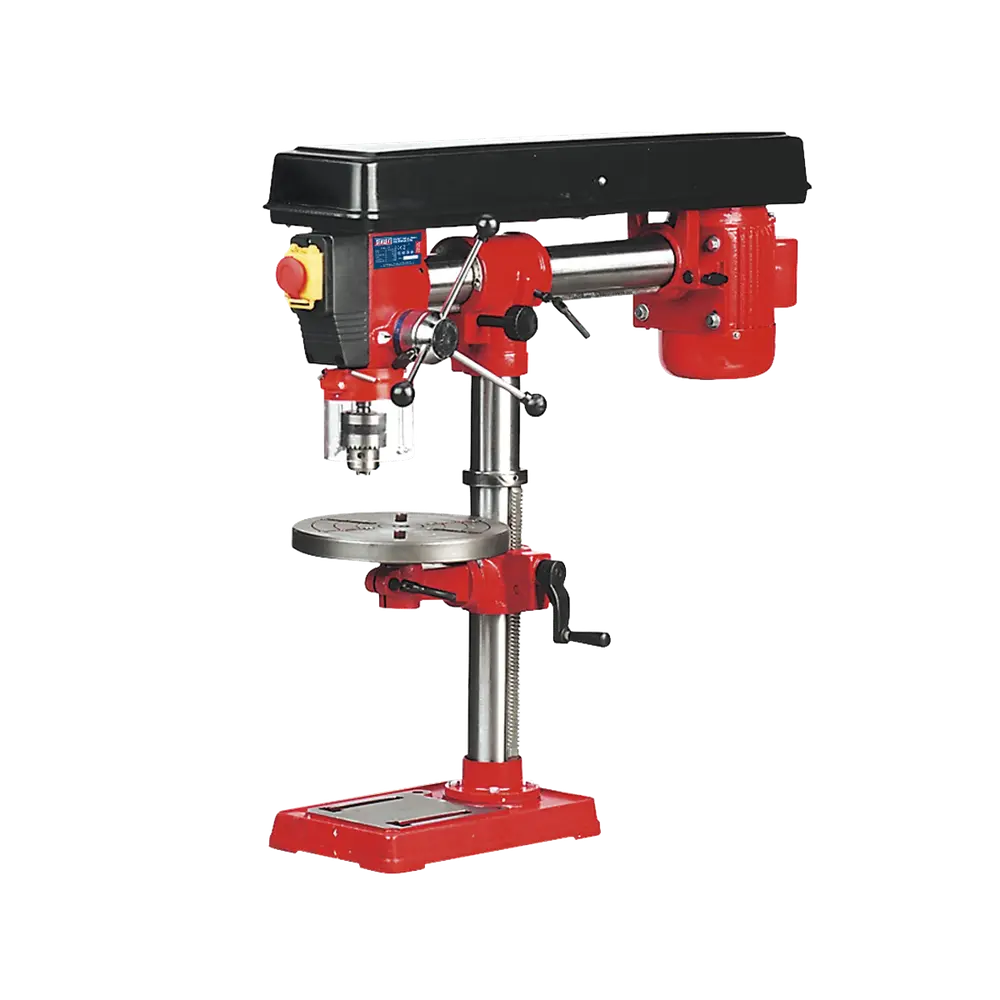

Bench Mounting Radial Pillar Drill 5-Speed 550W/230V [GDM790BR]

Description

• Heavy-duty construction.

• Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.

• Radial feature allows off-table drilling and angle drilling.

• Features a maximum throat depth of 420mm.

• Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.

• Also available as floor standing type – GDM1630FR.

• Mortise attachment available, order Model No. MA10.

• 16mm(5/8″) Capacity chuck No. 2MT.

• Height: 820mm.

• Spindle Centre to Column – Max: 420mm.

• Motor Power: 550W.

• Column Diameter: 60mm.

• Spindle Travel: 80mm.

• Weight: 43kg.
