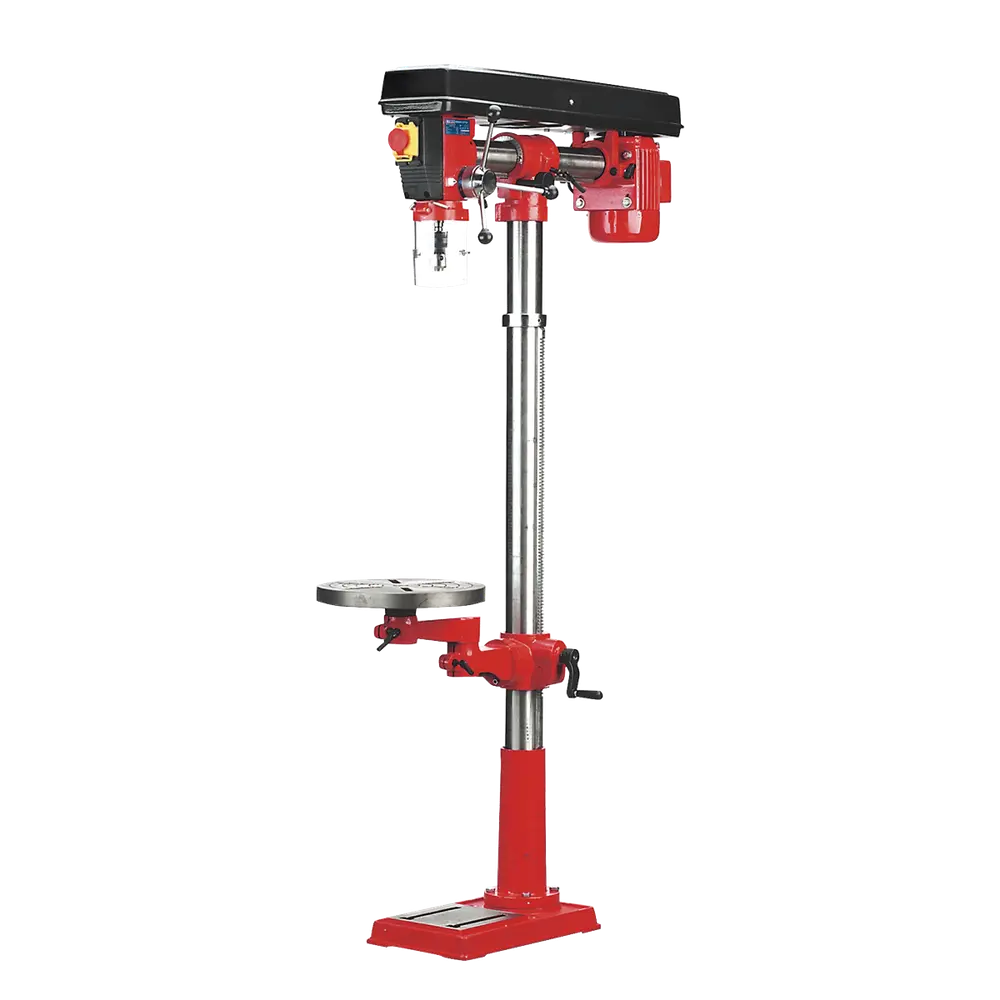

Floor Standing Radial Pillar Drill 5-Speed 550W/230V [GDM1630FR]

Description

• Heavy-duty construction.

• Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.

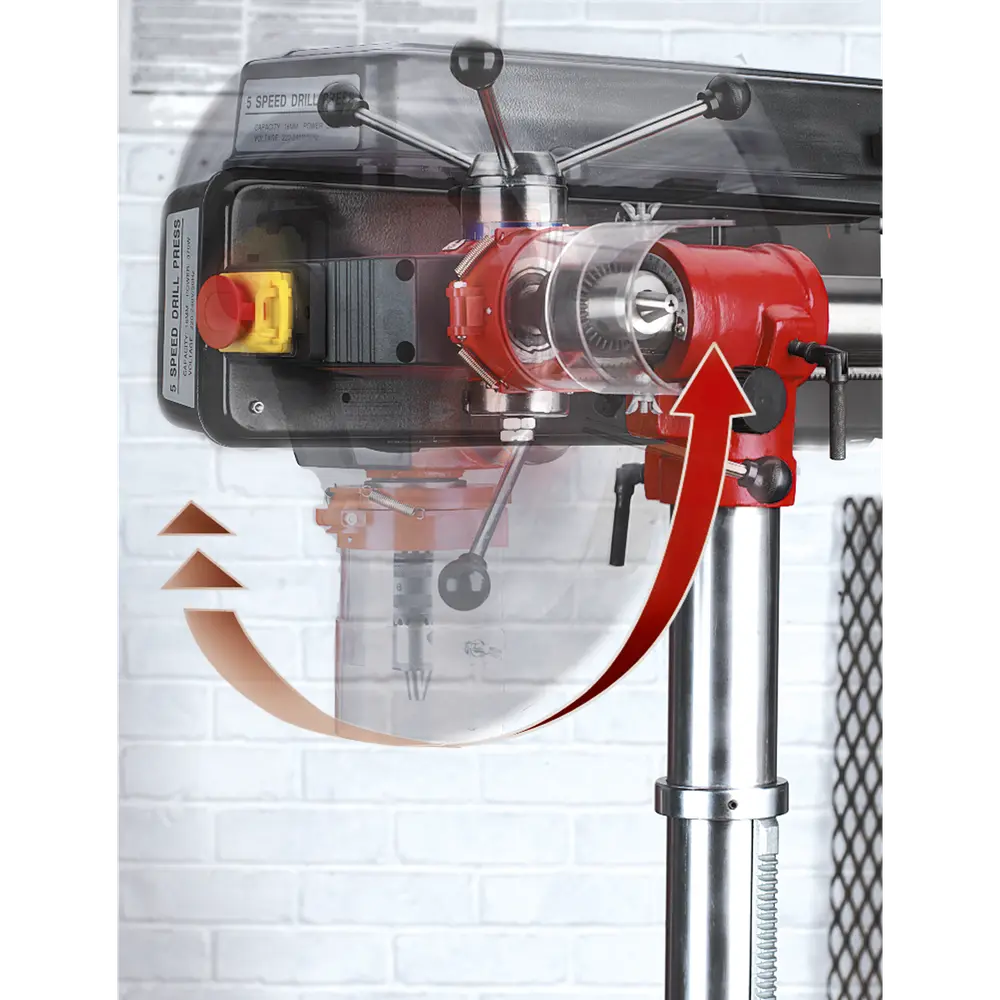

• Radial feature allows off-table drilling and angle drilling.

• Features a maximum throat depth of 420mm.

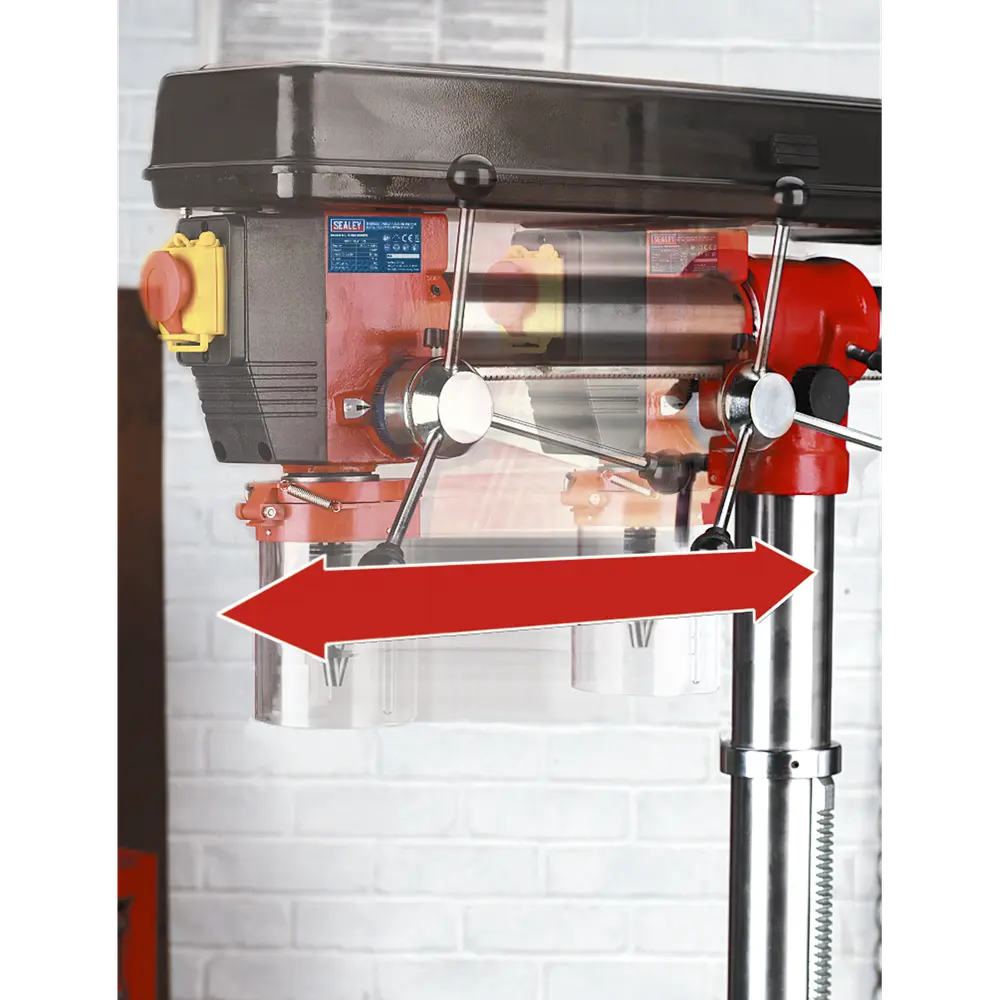

• Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.

• Also available as bench mounting type – GDM790BR.

• Mortise attachment available, order Model No. MA10.

• 16mm(5/8″) Capacity chuck, MT2.

• Height: 1620mm.

• Spindle Centre to Column – Max: 420mm.

• Motor Power: 550W.

• Column Diameter: 70mm.

• Spindle Travel: 80mm.

• Weight: 59kg.
