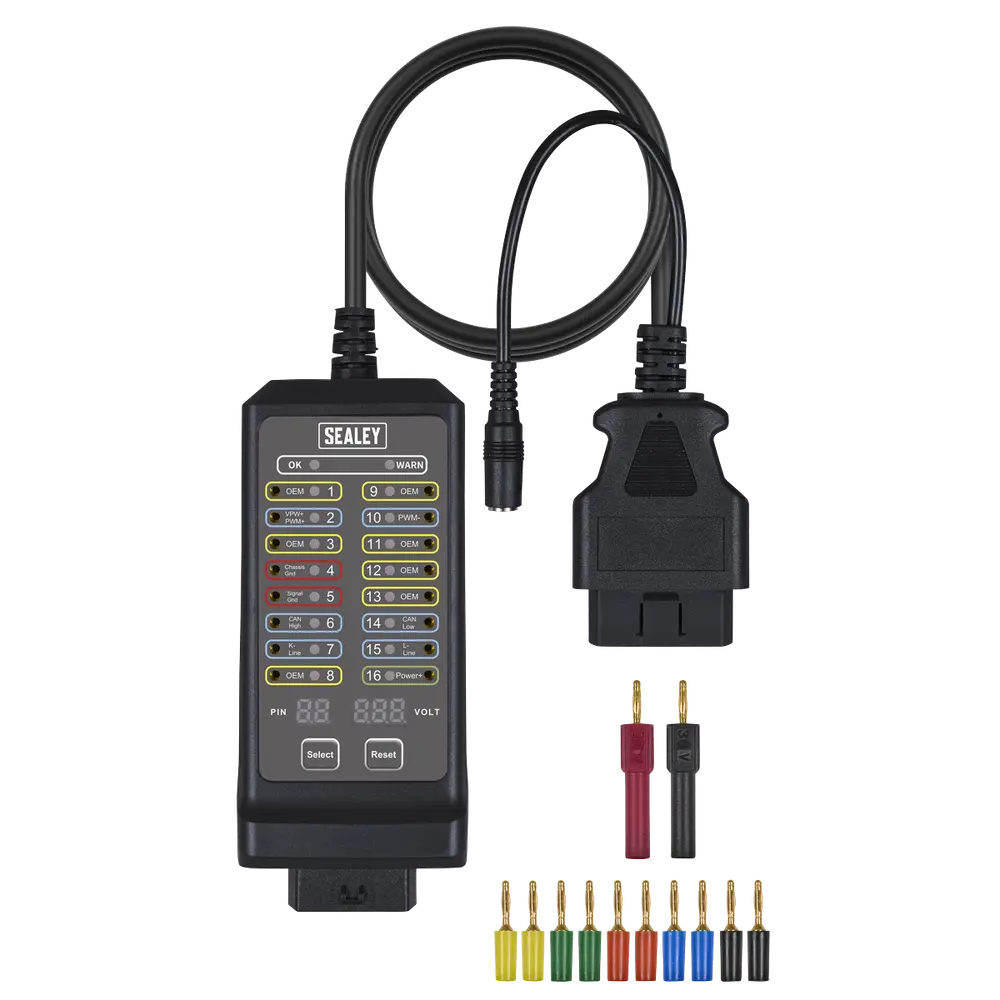

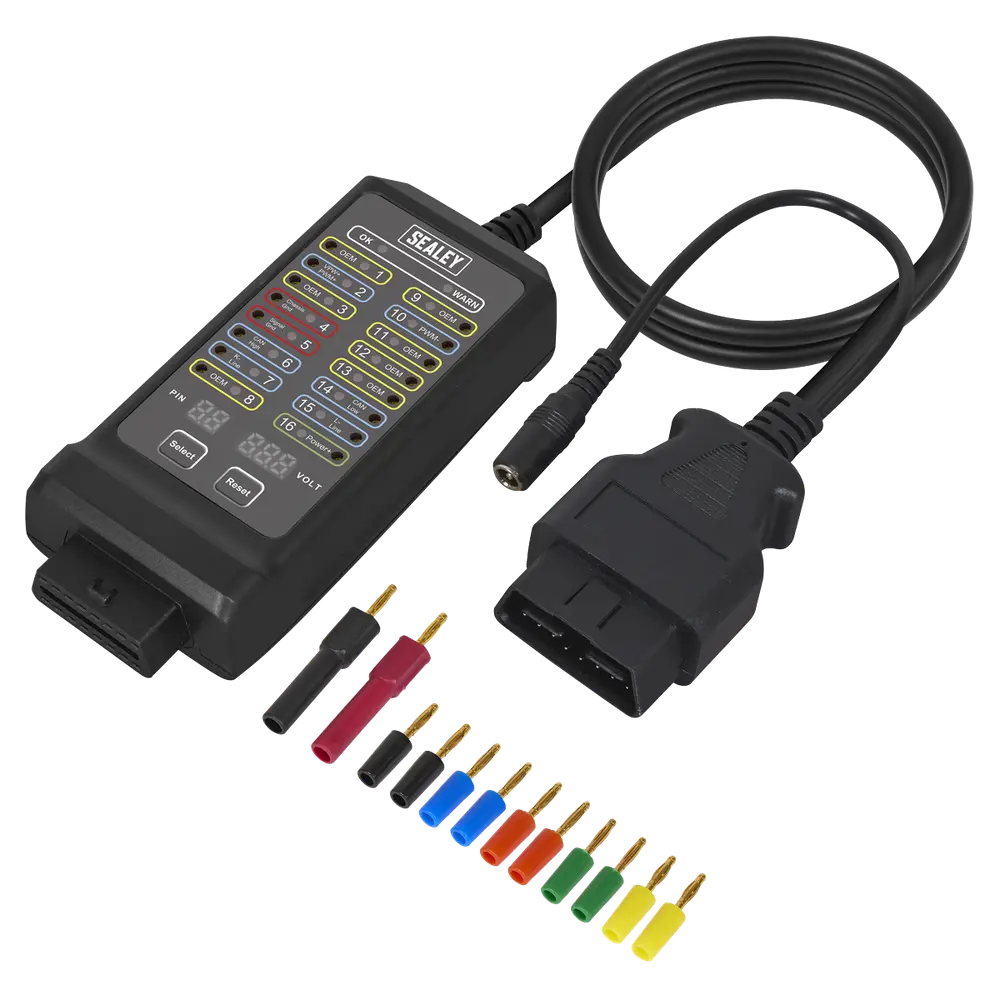

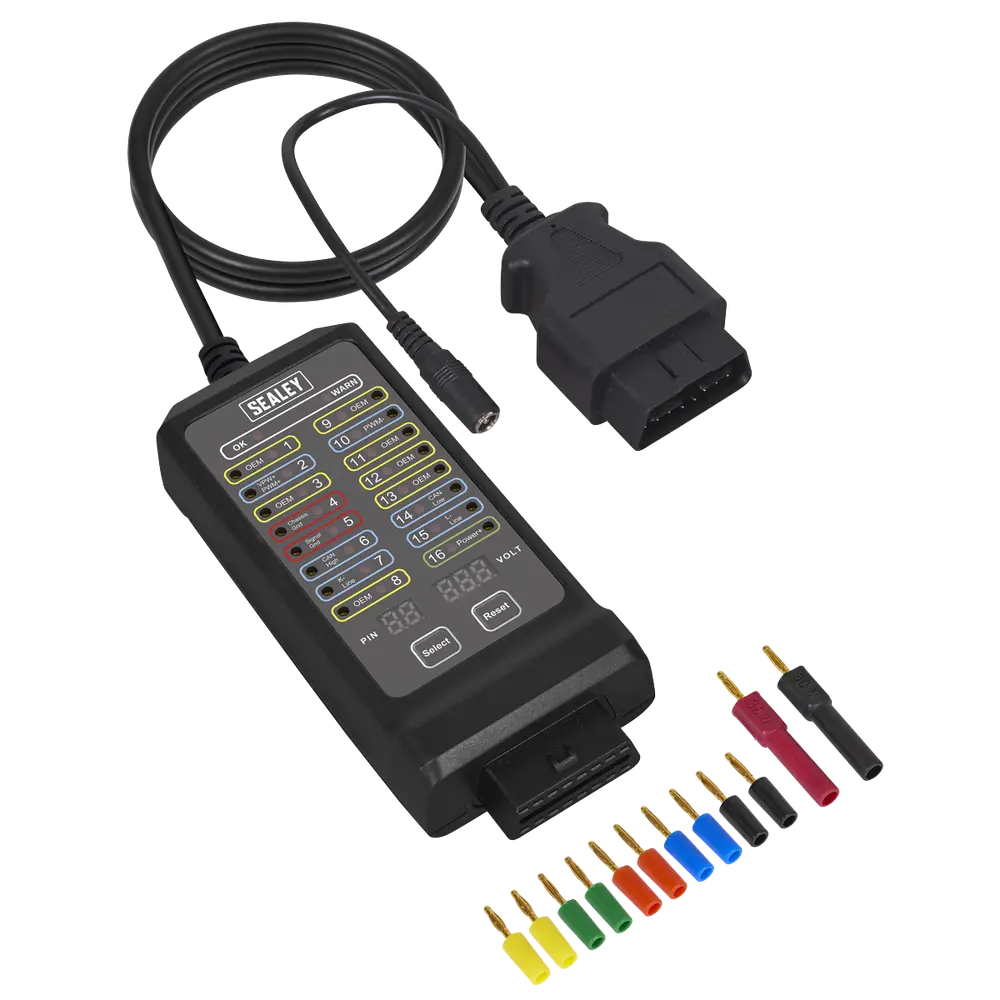

OBD Breakout Box 16-Pin 12V/24V [VS8813]

Description

• TESTS THE ON-BOARD DIAGNOSTOC PORT – For any faults before connecting other diagnostic devices to the DLC.

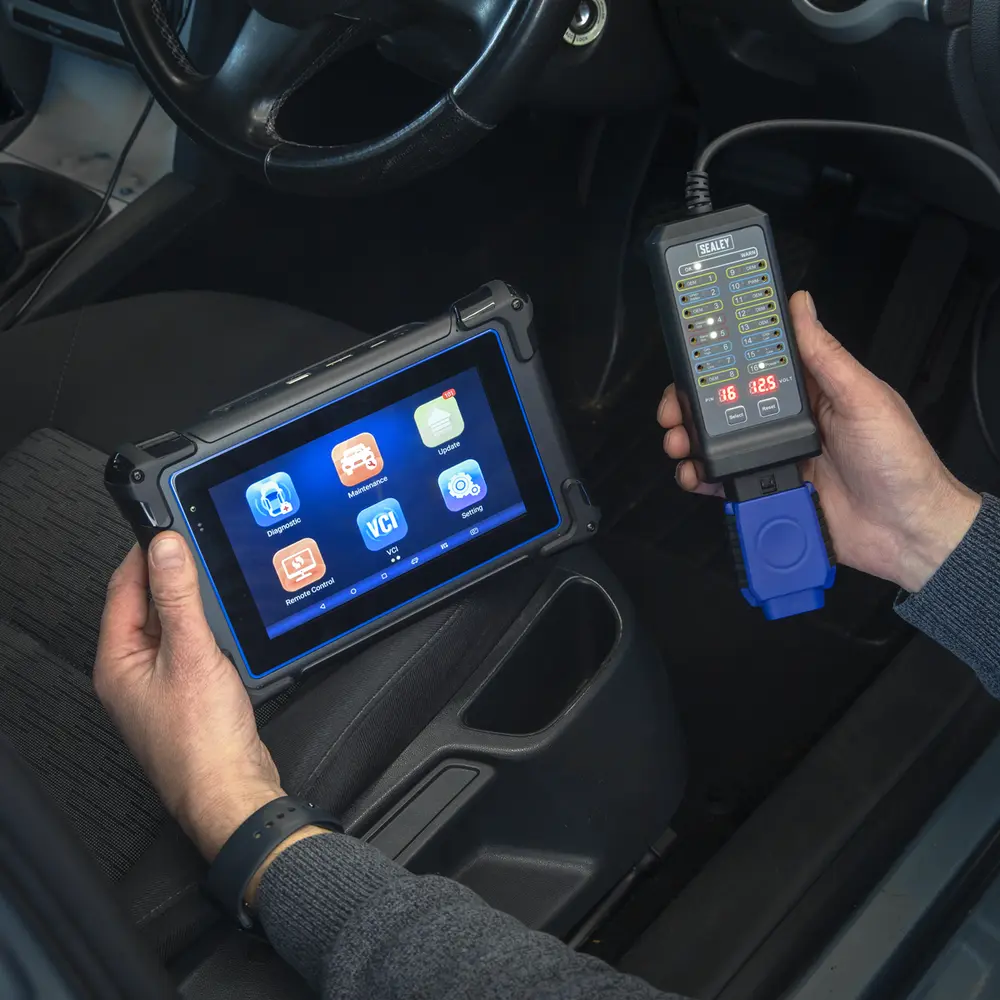

• UNIQUE DESIGN – The breakout box can be connected in series with 16-pin OBDII/EOBDII diagnostic equipment.

• CONNECTS TO MULTIMETERS AND OSCILLOSCOPES – To enable further testing.

• COMPATIBLE – With 12 and 24V systems.

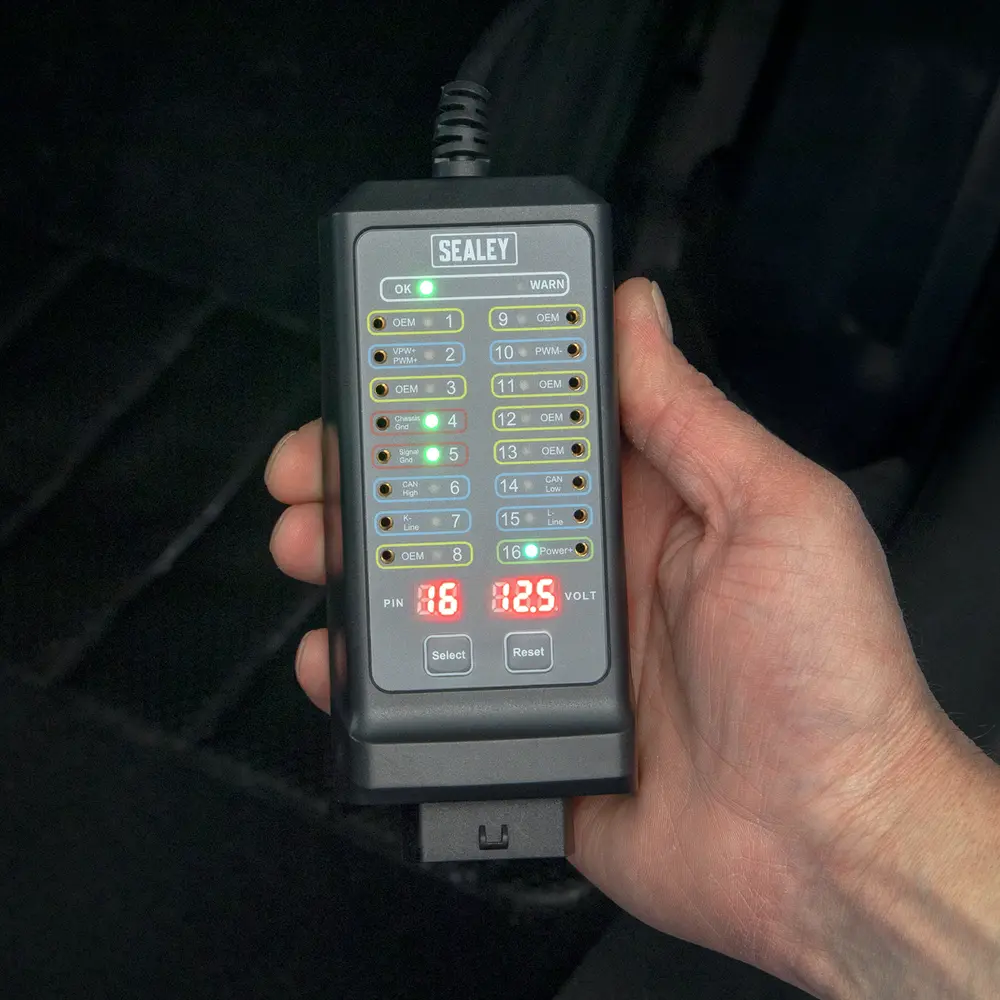

• SELECTABLE PIN VOLTAGE INDICATOR – Shows the real-time voltage of the selected pin.

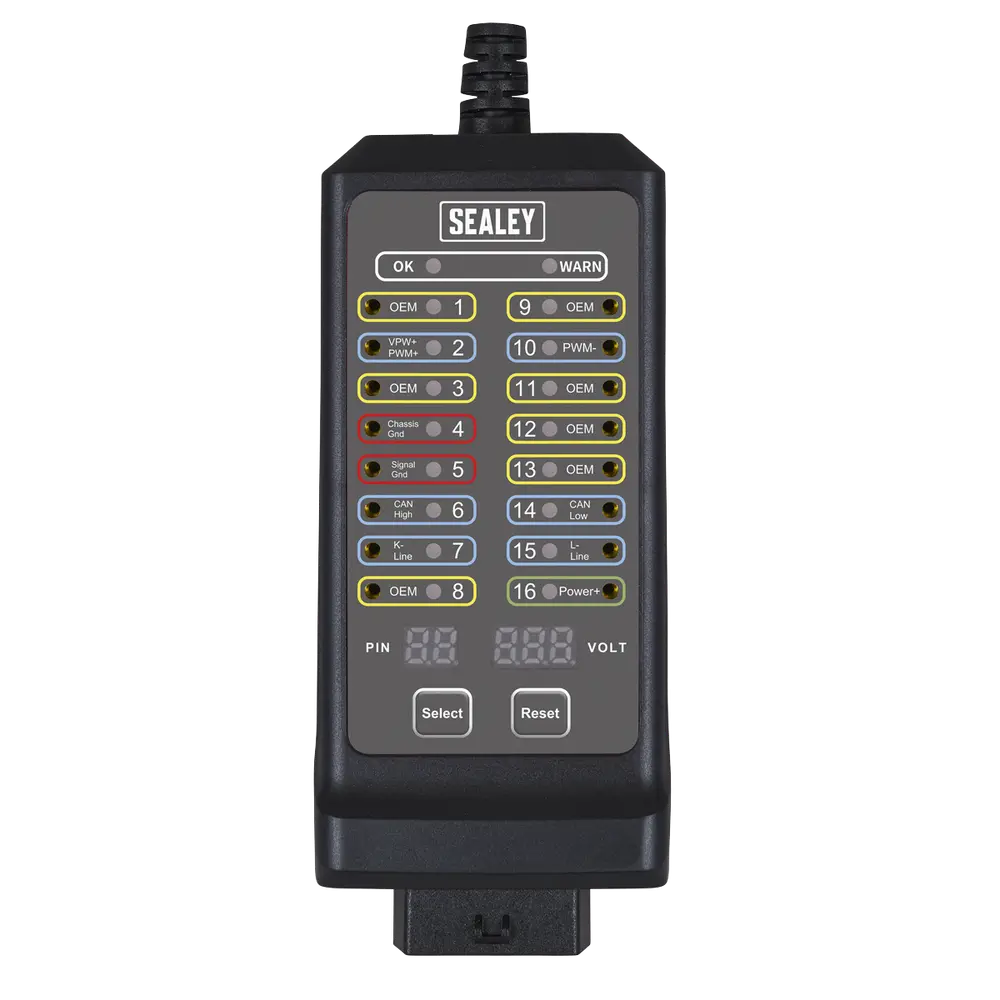

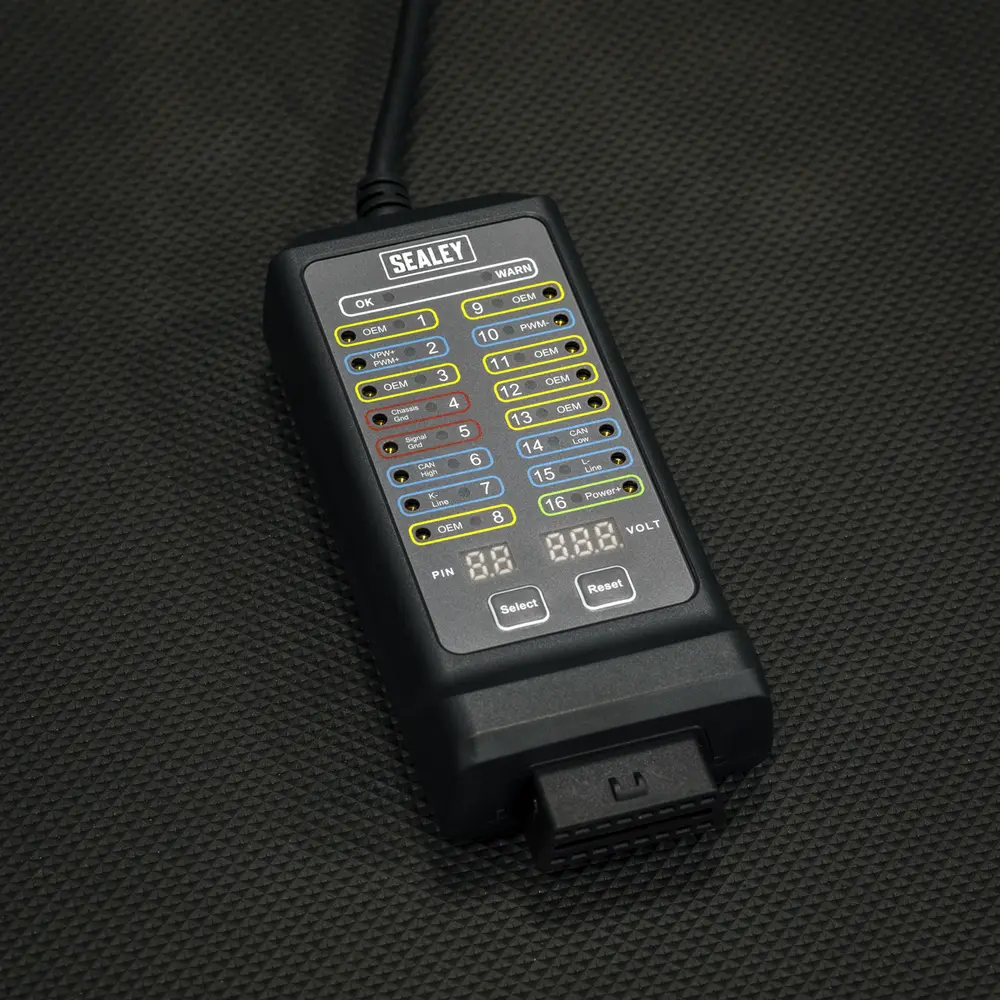

• COMMUNICCATION PROTOCOL INDICATOR – Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE.

• OVERLOAD PROTECTION – Protects any connected diagnostic equipment from damage.
