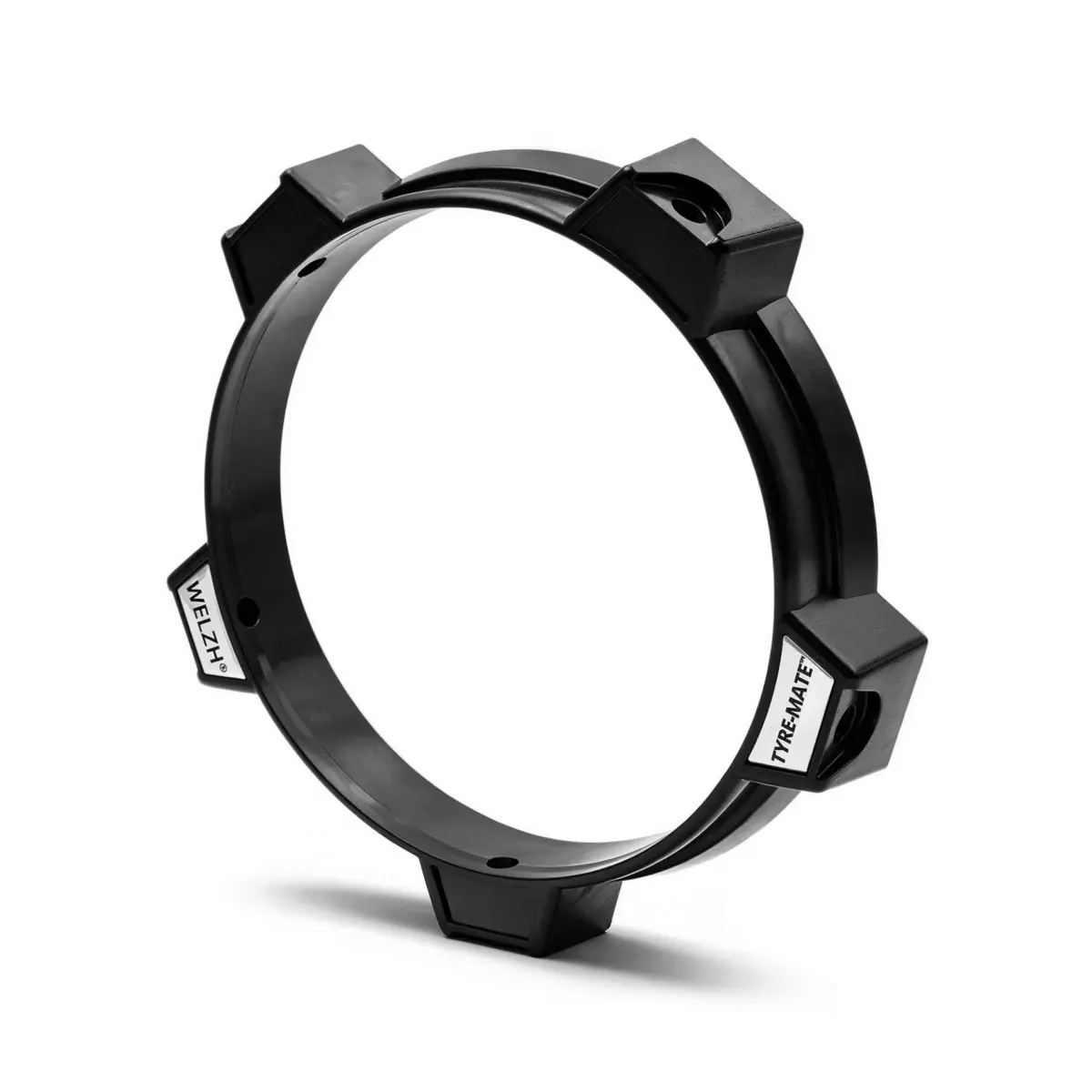

Tyre-Mate?; Fixing Collar

Description

– Fixing collar designed for use with the Tyre-Mate™ Vehicle Mobility System (7310-WW)
– Provides a secure connection between the Tyre-Mate™ hub and outer tyre assembly for safe vehicle movement when Hubs are seized or when an electric handbrake is applied when the vehicle battery is disconnected or dead
– Suitable for use with Tyre-Mate™ Centre Hub-2 (7310-2-WW)
– Supports loads of up to 1000kg per hub when used as part of the complete Tyre-Mate™ system
– Provides stable movement across gravel, uneven surfaces, inclines, and dirt
– Recommended for temporary vehicle movement only, not continuous road use

Technical Specifications
Maximum Load Capacity:
1000kg per Hub*

Recommended Maximum Distance:
20?30km (Not intended for prolonged or long-distance use)

If you wish to use the original hub supplied with 7310-WW together with the Fixing Collar (7310-1-WW), additional holes must be drilled into the original hub. Unlike the alternative hub, which is supplied with the required holes already in place, the original hub is not pre-drilled for the fixing collar. Position the fixing collar onto the original hub, mark the required hole locations with a marker pen, then drill and tap the holes using the M8 x 1.25 Thread Tapping Drill Bit (6181-M8-WW). Once completed, the fixing collar can be securely fitted to the original hub.
